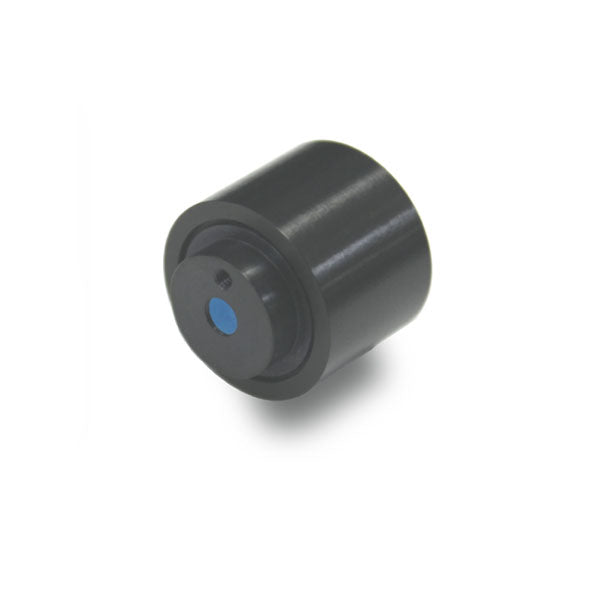

IR 1100 nm - 2000 nm Optical Isolator
IR 1100 nm - 2000 nm Optical Isolator
Compact optical isolator
Couldn't load pickup availability
1100 nm - 2050 nm NIR Optical Isolator and Faraday Rotator, aperture size 2mm to 11mm available, Optical isolators and Faraday rotators for any other wavelength between 1100nm to 2050nm are also available
Features
Features
Compact size easily fit in optical paths.
Single stage optical isolator provide 33dB (Tr=0.05%) isolation and 93% transmission.
Dual-stage otical isolators provide doubled isolation up to 60dB and 88% transmission
High power optical isolator with input and output rejecting beam exits Exits (E-version) should be selected if forward laser >3 W or rejected laser power >0.5 W. Compact Faraday Rotator provides customer required rotation angle with high transmission of 98% to 99.8% for all available wavelengths
Dimensions
Dimensions
Outside Diameter 18mm and OD 21mm
Length from 20 mm to 55 mm for single stage isolator.
Dual stage isolator lenth from 35 mm to 70 mm.
OD 25mm for some aperture 5mm isolators
Care Instructions
Care Instructions
Caution! Strong magnets, handle with care.
