400nm-633nm Compact Optical Isolators - Faraday Isolators

Compact size easily fit in optical paths.

Single stage optical isolator provide 33dB (Tr=0.05%) isolation and 93% transmission.

Dual-stage otical isolators provide doubled isolation up to 60dB and 88% transmission

High power optical isolator with input and output rejecting beam exits Exits (E-version) should be selected if forward laser >3 W or rejected laser power >0.5 W. Compact Faraday Rotator provides customer required rotation angle with high transmission of 98% to 99.8% for all available wavelengths

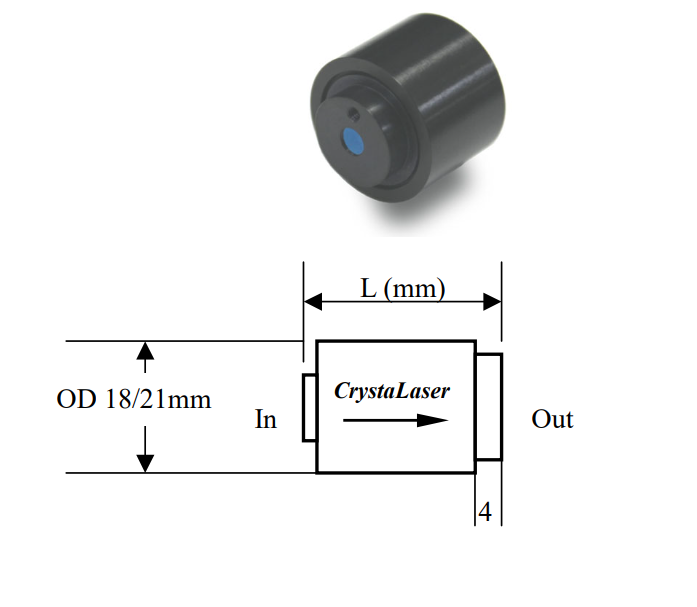

Outside Diameter 18mm and OD 21mm

Length from 20 mm to 55 mm for single stage isolator.

Dual stage isolator lenth from 35 mm to 70 mm.

OD 25mm for some aperture 5mm isolators

Caution! Strong magnets, handle with care.
